TekSpan® Horizontal Holder Plate for 100mm Profile
- Product Code: 60205

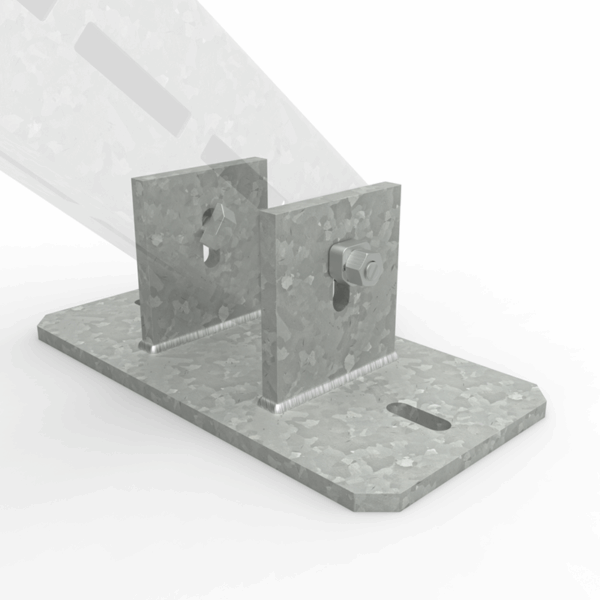

TekSpan® 100mm Holder Plate
Holder plate for mounting frames, with the facility to support angled connections.
- Pack Qty: 1
Downloads
Description
Holder plate for connecting TekSpan profiles at an angle. Allows for connection of profiles for extra bracing and rigidity.
Downloads
Technical Data
| Orientation | Horizontal |
|---|---|
| Pack Qty | 1 |
| Weight | 5.72kg |
| Material | Steel S235 |
| Finish | Hot Dip Galvanised |
| Profile Type | 100mm |
| Plate Width | 320mm |
| Plate Length | 160mm |
| Height | 120mm |
| Plate Thickness | 10mm |
| Plate Slot Size | 14x40mm |
| Load Fx | 11kN |
| Load Fy | 11kN |
| Load Fz | 20kN |
| Tightening Torque | 60Nm |
| Angle | 90° |
