TekSpan® Zynox 45 2-Hole Wing Angle Bracket
- Product Code: 60236
For mounting on the end of TekSpan Zynox 45 profile to make threaded connections.
- Pack Qty: 1
Downloads
Description

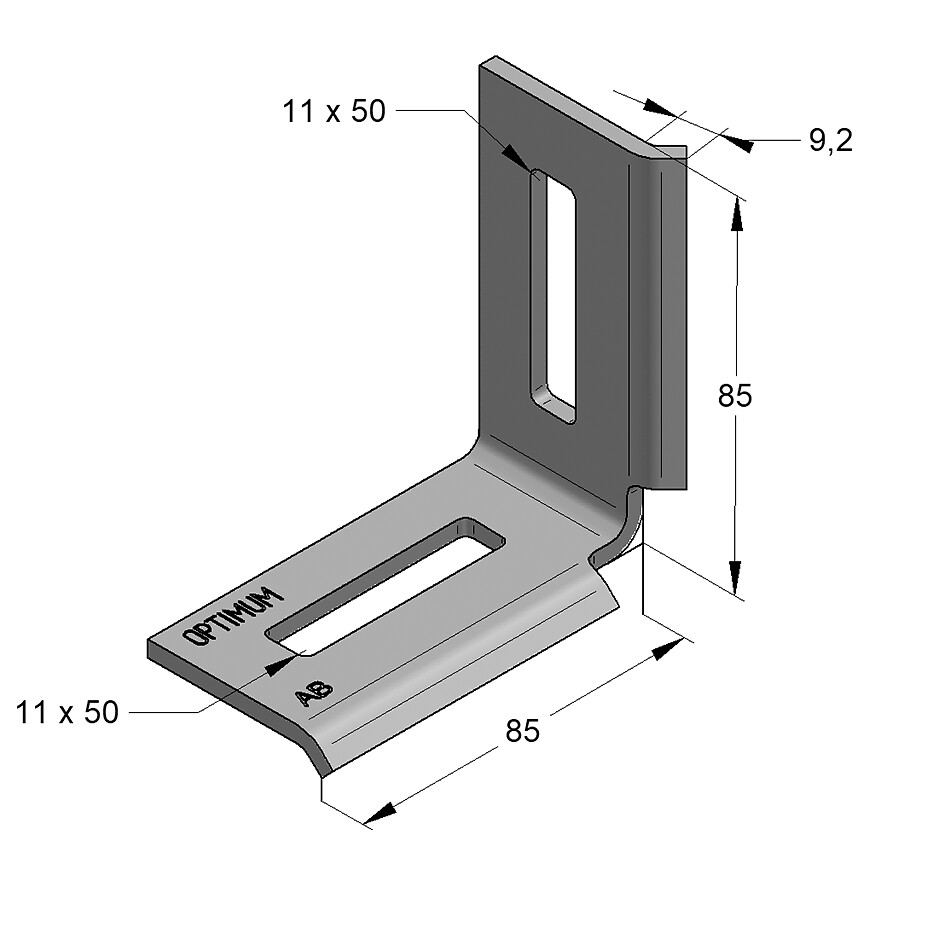

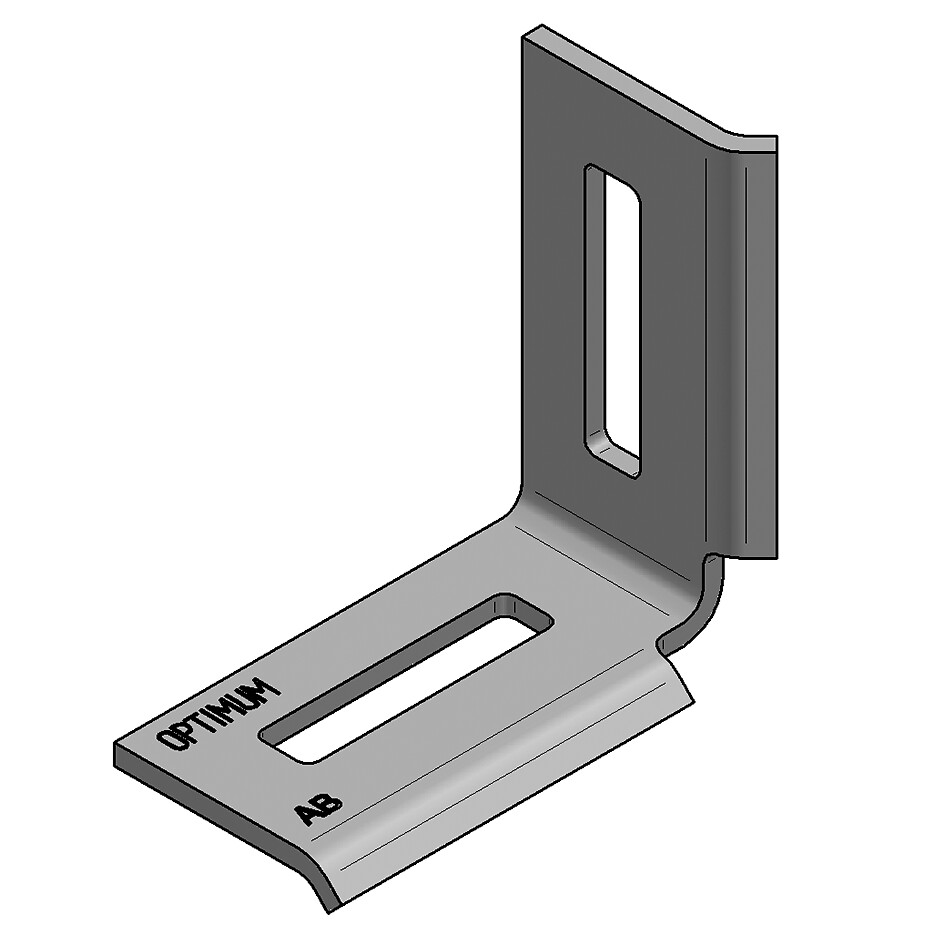

Two hole 90° wing angle bracket, for mounting Zynox 45mm profile at right angles.
Downloads
Technical Data
| Pack Qty | 1 |
|---|---|
| Weight | 0.192kg/pc |
| Material | Steel |
| Finish | Zinc-Nickel |
| Profile Type | 45mm |
| Length Wing 1 | 85mm |
| Length Wing 2 | 85mm |
| Width | 45mm |
| Thickness | 4mm |
| Slot Size | 11x50mm |
| Load Fz | 2kN |
| Angle | 90° |
