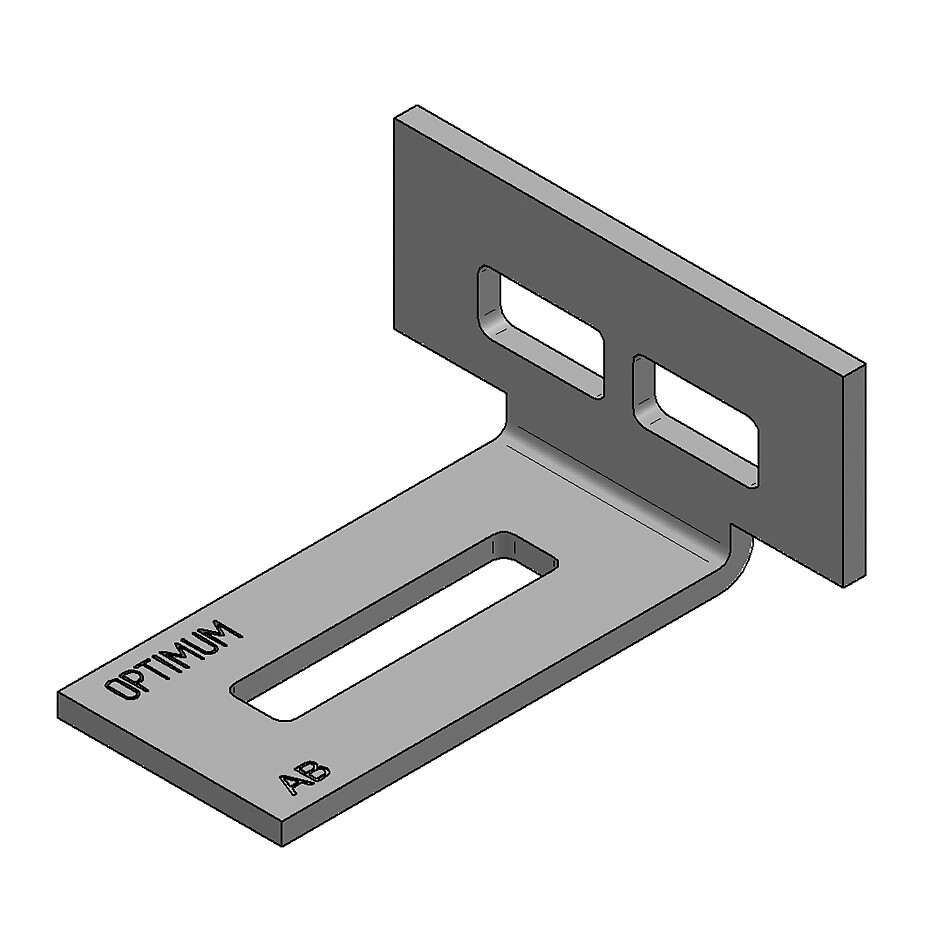

TekSpan® Zynox 45 3-Hole Wing Horizontal Angle Bracket
- Product Code: 60238

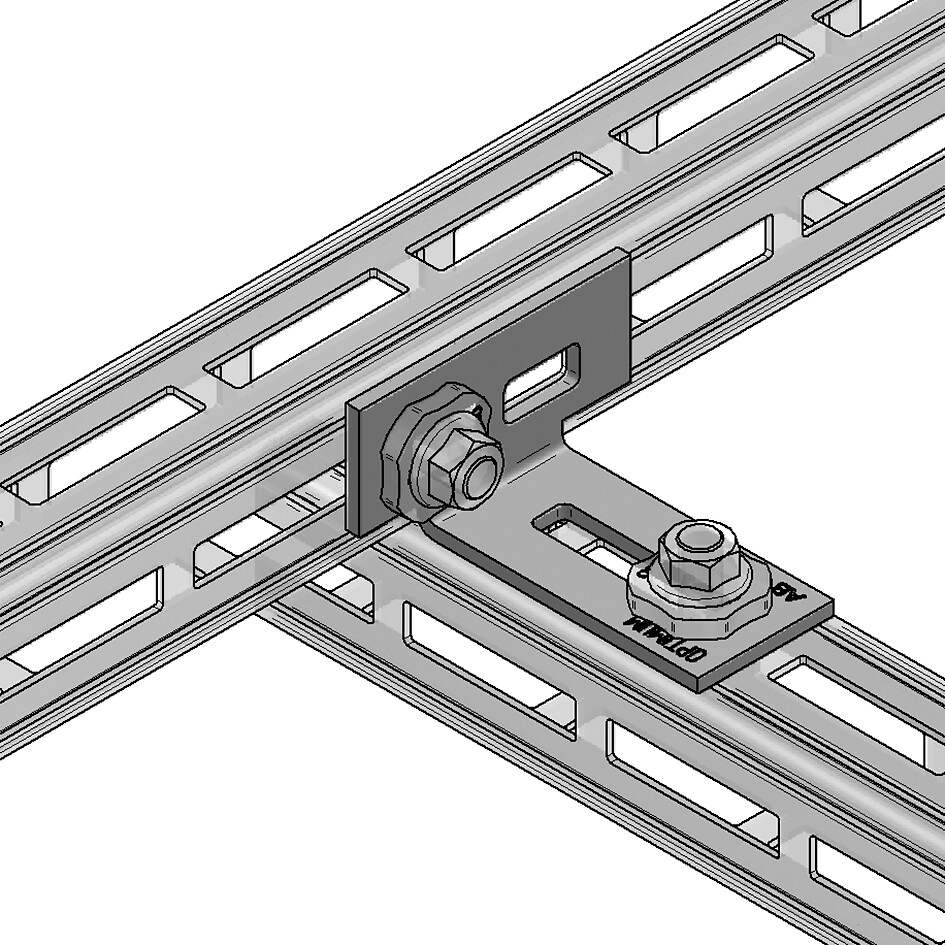

Three hole 90° wing horizontal angle bracket, for mounting Zynox 45mm profile at right angles with longitudinal adjustment when installing.
- Pack Qty: 1
Downloads
Description
Three hole 90° wing horizontal angle bracket, for mounting Zynox 45mm profile at right angles with longitudinal adjustment when installing.
Downloads

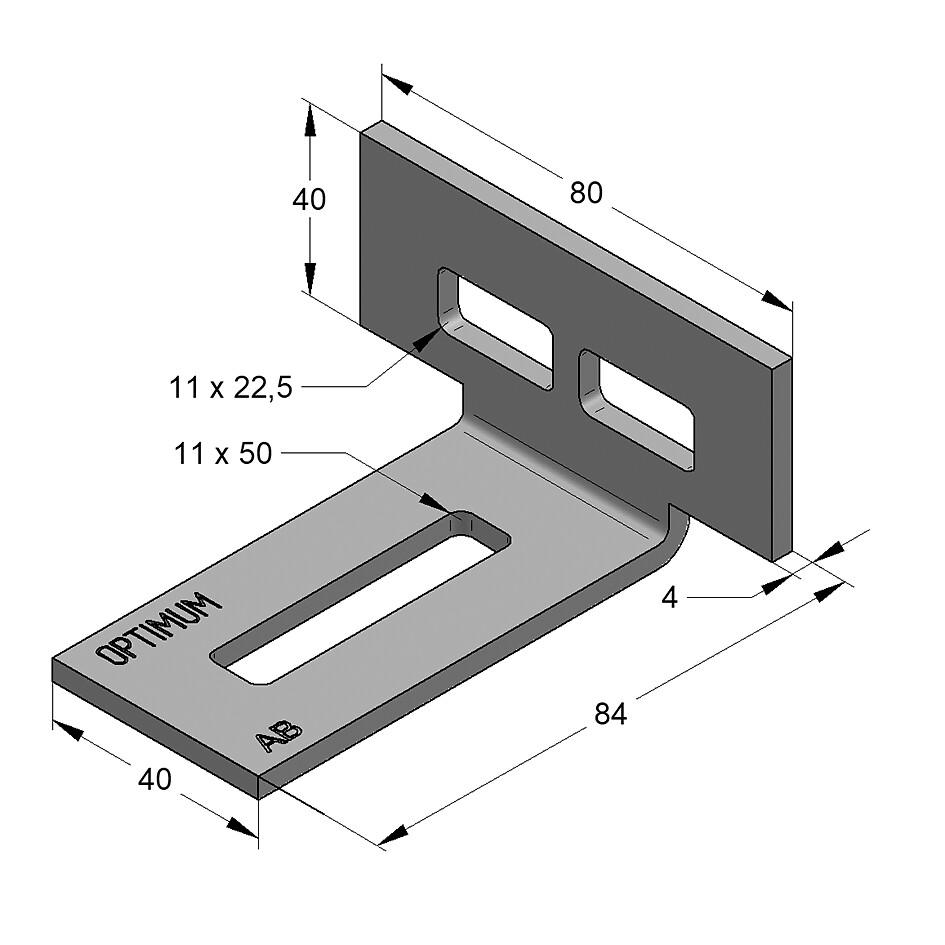

Technical Data
| Pack Qty | 1 |
|---|---|
| Weight | 0.165kg/pc |
| Material | Steel |
| Finish | Zinc-Nickel |
| Profile Type | 45mm |
| Length Wing 1 | 80mm |
| Length Wing 2 | 40mm |
| Thickness | 4mm |
| Slot Size | 11x50mm |
| Load Fz | 3kN |
| Angle | 90° |
