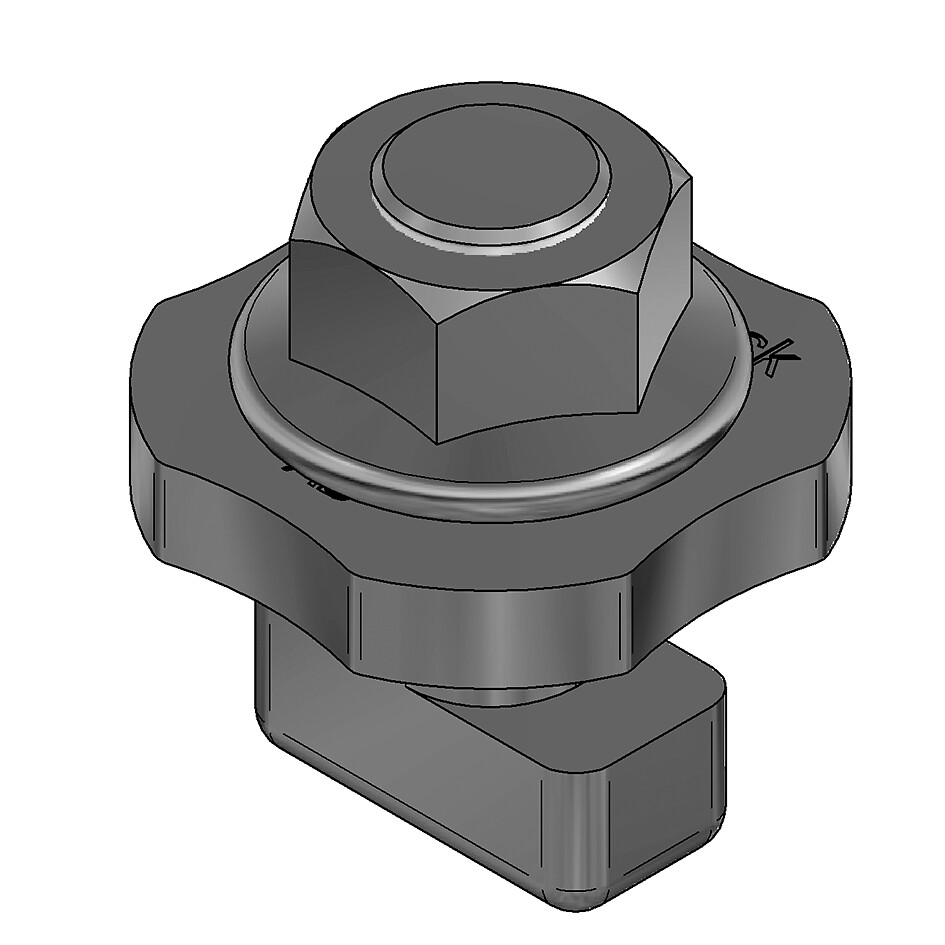

TekSpan® Zynox 45 Opti-Lock Bolt
- Product Code: 60126
8.8g Opti-Lock Bolt with locking washer – locks securely through frame slots with locating collar and captive serrated washer “bites” into bracket fixture, providing exceptional joint strength.
- Pack Qty: 50
Downloads
Description
The Opti-Lock Bolt – 8.8g grade high tensile bolt that locks securely in place, and joins frames and components together in an easy-to-adjust, permanent fixture. Locating collar maintains alignment, and captive serrated washer “bites” into bracket fixture, for an exceptionally secure fixing and joint strength.
TekSpan T-Lock bolts are made from zinc-nickel, meaning issues like zinc whiskers (as encountered with zinc plated fasteners) are avoided.
Downloads
Technical Data
| Pack Qty | 50 |
|---|---|
| Weight | 0.0550kg/pc |
| Material | Steel |
| Finish | Zinc-Nickel |
| Strength Class | 8.8 |
| Max Load Fx - 45mm Profile | 3kN |
| Max Load Fy - 45mm Profile | 8kN |
| Max Load Fz - 45mm Profile | 4.5kN |
| Thread | M10 |
| Length Thread | 15mm |
| Tightening Torque | 50Nm |
| Overall Length | 32mm |
| Width Hammer Head | 10mm |
| Diameter Washer | 30mm |
| Length Hammer Head | 20mm |
| Thickness Hammer Head | 10mm |
| Thickness Washer | 5mm |
| Profile Type | 45mm |
