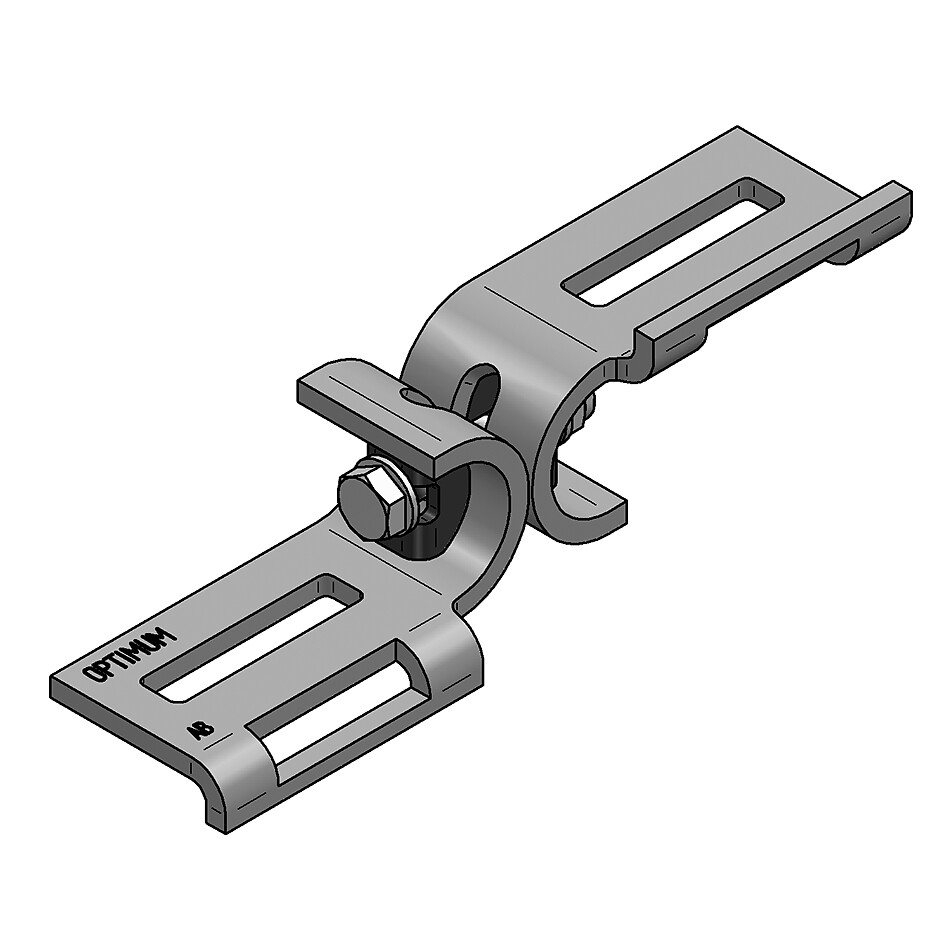

TekSpan® Zynox 45 3D Connector
- Product Code: 60334
Universal joint connection that enables the connection of Zynox 45 profiles at vertically any angle.
- Pack Qty: 1
Downloads
Description

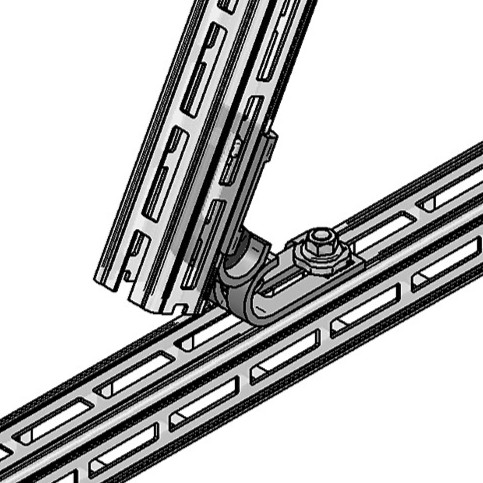

Universal joint connection that enables the connection of Zynox 45 profiles at vertically any angle.
Downloads

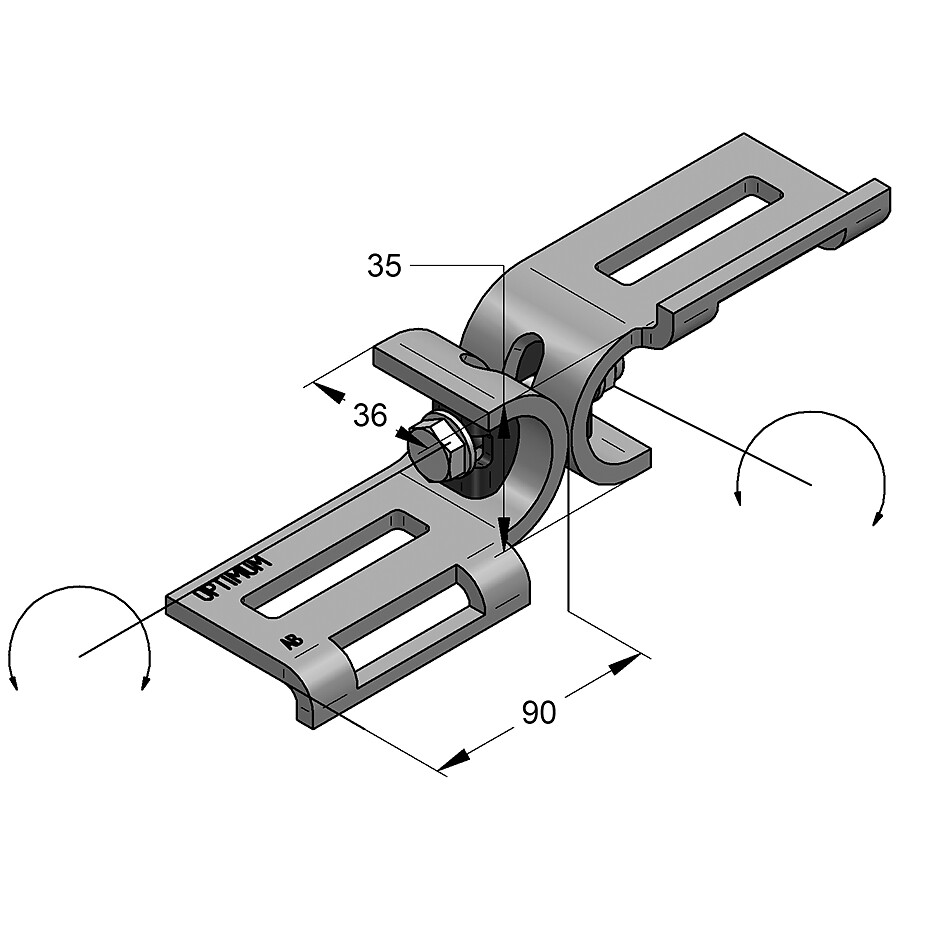

Technical Data
| Pack Qty | 1 |
|---|---|
| Weight | 0.418kg/pc |
| Material | Steel |
| Finish | Zinc-Nickel |
| Profile Type | 45mm |
| Length Wing 1 | 90mm |
| Length Wing 2 | 90mm |
| Width | 36mm |
| Thickness | 4mm |
| Slot Size | 11x50mm |
| Load Fz | 3kN |
| Angle | 80-280° |
