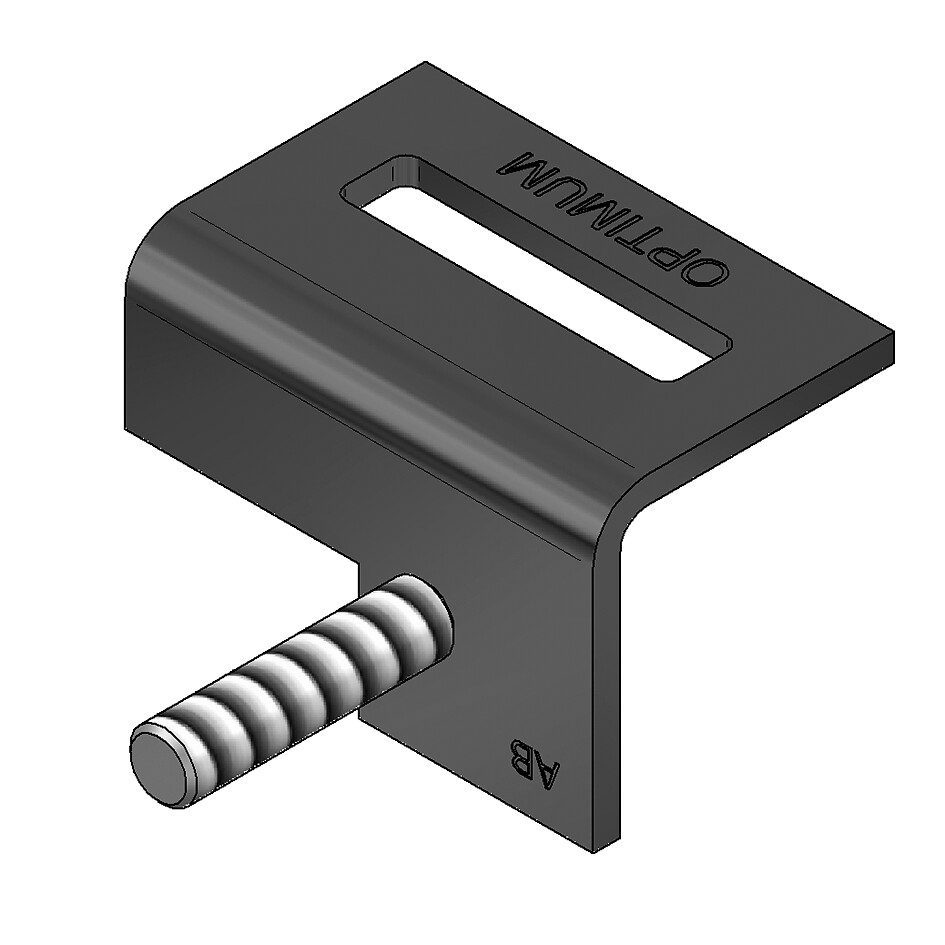

TekSpan® Zynox 45 M10x20 Thread Adaptor
- Product Code: 60178
For mounting on the end of TekSpan Zynox 45 profile to make threaded connections.
- Pack Qty: 1
Downloads
Description
For mounting on the end of TekSpan Zynox 45 profile to make threaded connections.
Downloads

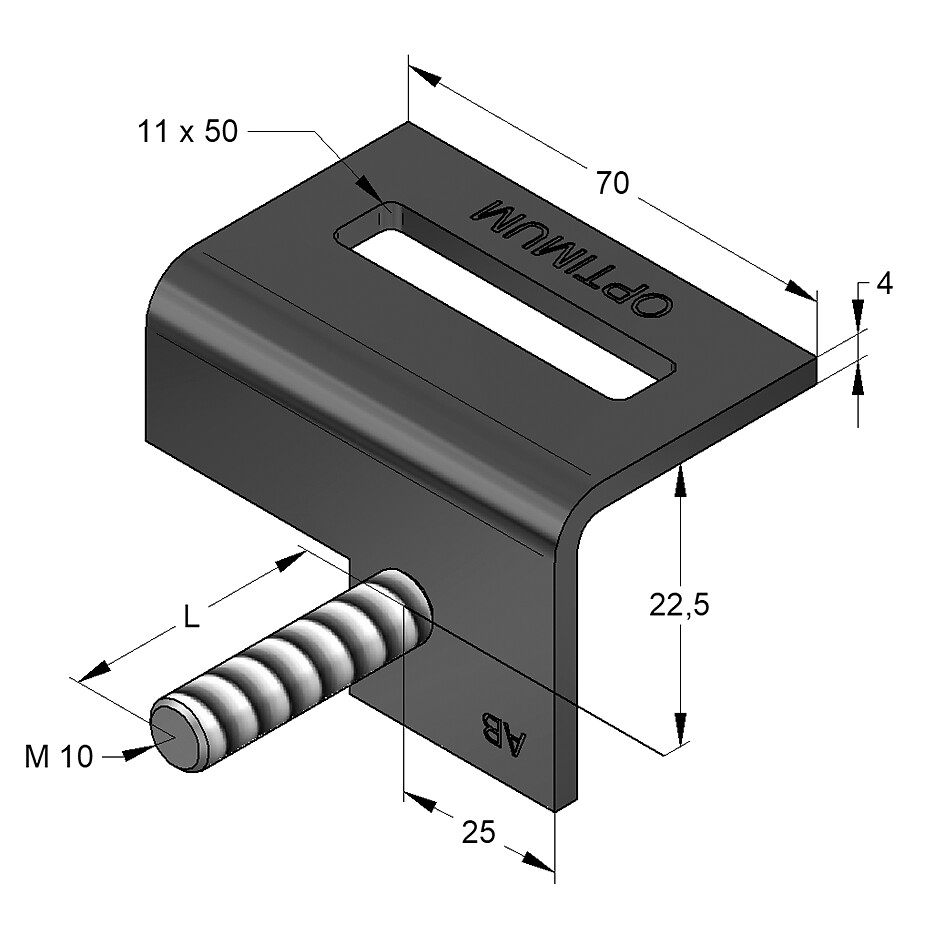

Technical Data
| Pack Qty | 1 |
|---|---|
| Weight | 0.159kg/pc |
| Material | Steel |
| Finish | Zinc-Nickel |
| Profile Type | 45mm |
| Slot Size | 11x50mm |
| Thread | M10 |
| Length Thread | 20mm |
| Length | 70mm |
| Tightening Torque | 10Nm |
| Load Fx | 6kN |
| Load Fz | 9kN |
| Thickness | 4mm |
